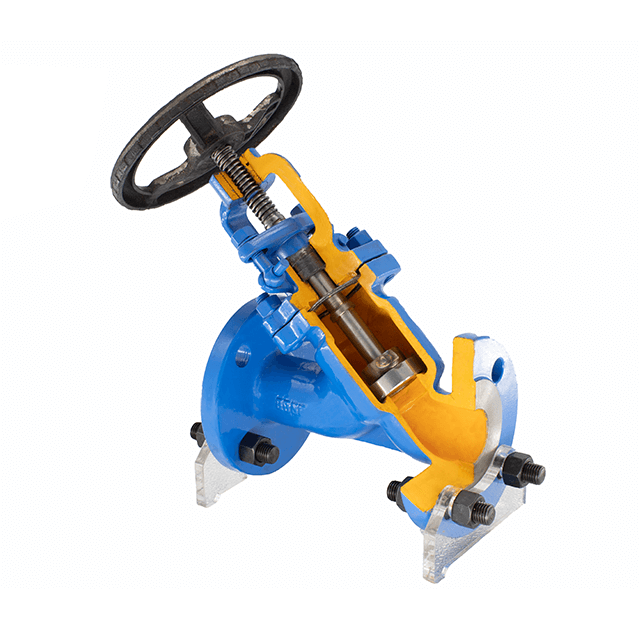

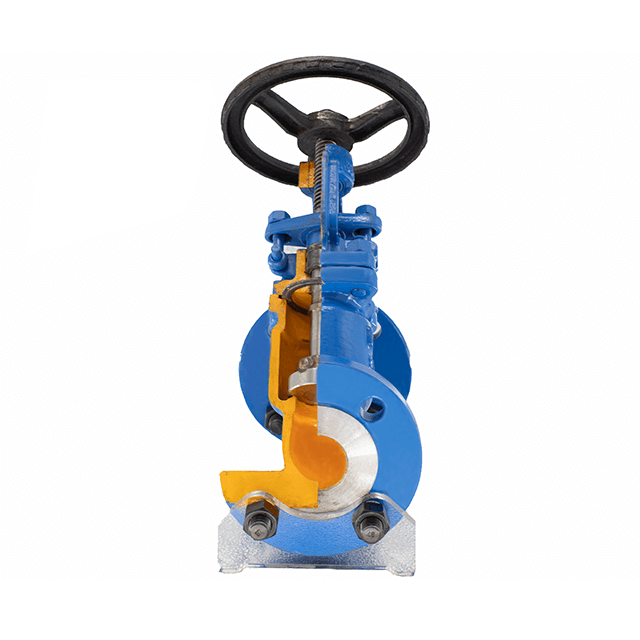

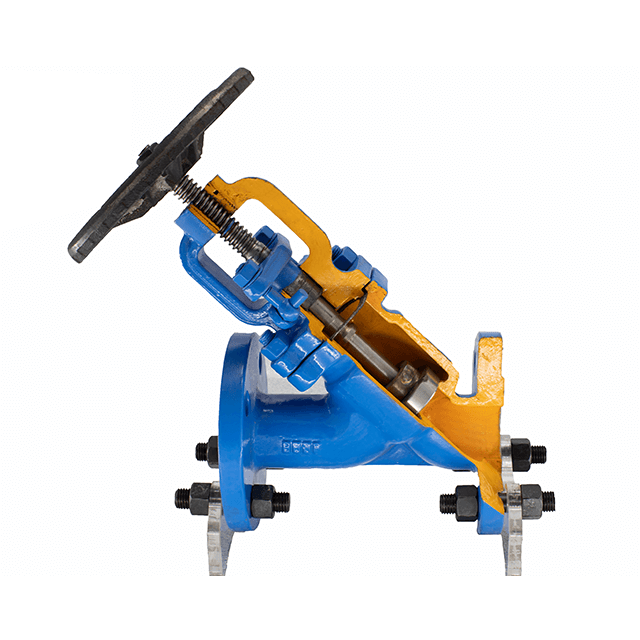

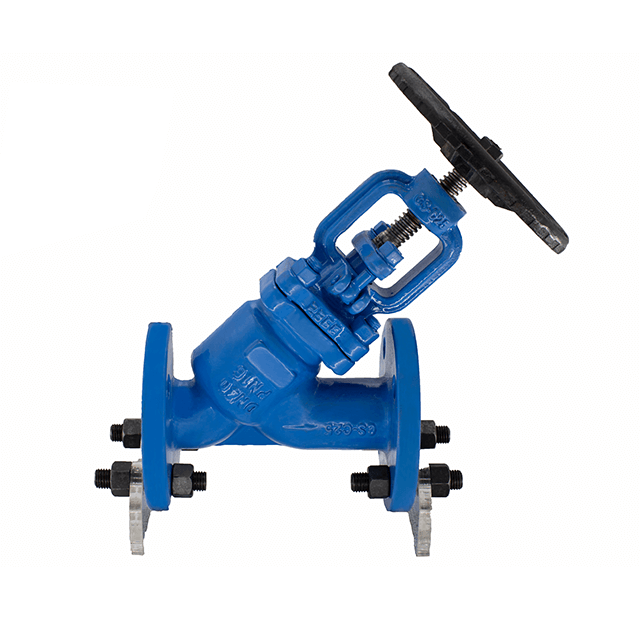

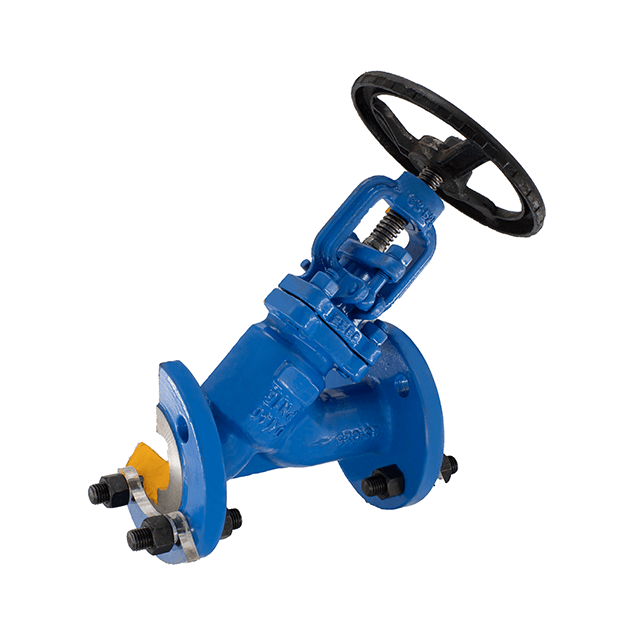

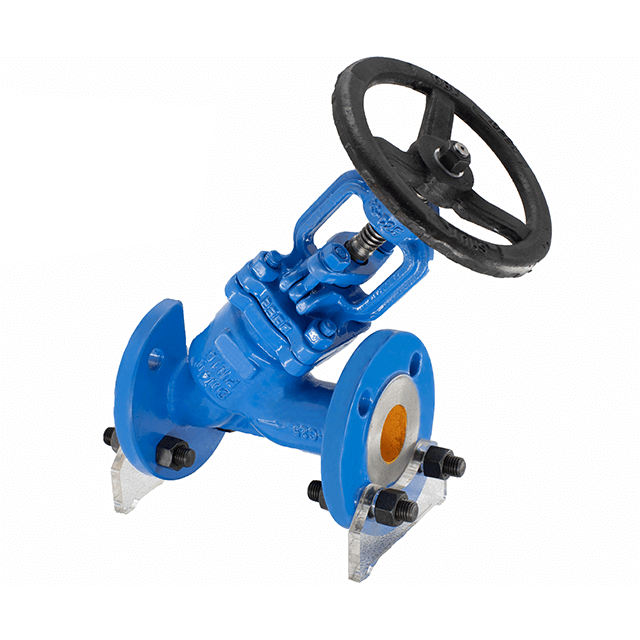

Din Y Type Golbe Valve

Advantage
1.Bellow seal element. The key part of bellow sealed globe valves is mental bellow. It is the connection between cover and stem with automatic roll welding. The mental bellow can keep the stem part no leakage.
2.Benefit from the cone and streamline shape design, the disc has a reliable seal and longer service life.
3.Double seal design(bellows+packing). Bellow and packing can protect against leakage and provide a excellent seal.
4.Grease nipple. It can direct lubricate the stem, nut and sleeve.
5.Ergonomic hand wheel. It provide longer service life and easier operation.
Technical specification
Design standard: DIN 3356
Face to face dimension: DIN 3202
Flanged ends: DIN 2543-2545
Test & inspection: DIN 3230


Size:	DN15 DN20 DN25 DN32 DN40 DN50 DN65 DN80 DN100 DN125 DN150 DN200 DN250 DN300 DN350 DN400 DN450 DN500
Availability:



Inquire Add to Basket

Model:
YJ41H
Brand:
LOMYV
Code:
8481804090

Product Description

Application
Hot oil system, steam system, hot and cold water system etc.
Advantage
1. Disc is coniform and streamline shape design, reliable seal, longer use life.
2. Human engineering hand wheel-an enhanced design provides longer life, easy and convenient operation, more safety.
3. Steam Heat-treatment and surface nitriding-treatment to sure fuction-resistanced and friction-resistanced
Technical specification
Design standard: DIN 3356
Face to face dimension: DIN 3202
Flanged ends: DIN 2543-2545
Test & inspection: DIN 3230
Nominal Pressure		PN
Test Pressure	Strength test	1.5PN	MPa
	Sealing test	1.1PN
	Gas seal test	0.6
	--	--
Suitable temp		-196℃~600℃

NO.	Part name	Material
1	Body	GS-C25、GGG-40、1.4401
2	Seat	1.4301、Stellite
3	Disc	1.4021、1.4401
4	Pin	1.4301、1.4401
5	Stem	1.4201、1.4401
6	Bellows	1.4021、1.4401
7	Gasket	Stainless+Flexible graphite
8	Cover	GS-C25、GGG-40、1.4401
9	Hex nuts	ASTM 194-2H、A194-8
10	Stud	ASTM 193-B7、A194-B8
11	Packing	Flexible graphite
12	Platen	1C25、1.4401
13	Stem guide	1C25
14	Stem nut	Copper alloy、D2、BL2
15	Hand wheel	Carbon steel
16	Locknut	1C45
17	Nut	A194-2H、A194-8

PN 16
DN	Main connection size
DN	L	D	D1	D2	b	f	H
15	130	95	65	45	16	2	195
20	150	105	75	58	18	2	195
25	160	115	85	68	18	2	207
32	180	140	100	78	18	2	218
40	200	150	110	88	18	3	225
50	230	165	125	102	20	3	230
65	290	185	145	122	20	3	272
80	310	200	160	138	20	3	290
100	350	220	180	158	20	3	355
125	400	250	210	188	22	3	410
150	480	285	240	212	22	3	425
200	600	340	295	268	24	3	540
250	730	405	355	320	26	3	665
300	850	460	410	378	28	4	720
350	980	520	470	438	30	4	970
400	1100	580	525	490	32	4	1055
PN 25
15	130	95	65	45	16	2	195
20	150	105	75	58	18	2	195
25	160	115	85	68	18	2	207
32	180	140	100	78	18	2	218
40	200	150	110	88	18	3	225
50	230	165	125	102	20	3	230
65	290	185	145	122	22	3	272
80	310	200	160	138	24	3	290
100	350	235	190	162	24	3	355
125	400	270	220	188	26	3	410
150	480	300	250	218	28	3	425
200	600	360	310	278	30	3	540
250	730	425	370	335	32	3	665
300	850	485	430	395	34	4	720
350	980	555	490	450	38	4	970
400	1100	620	550	505	40	4	1055
PN 40
15	130	95	65	45	16	2	195
20	150	105	75	58	18	2	195
25	160	115	85	68	18	2	207
32	160	140	100	68	18	2	218
40	180	150	110	78	18	3	225
50	230	165	125	102	20	3	230
65	290	185	145	122	22	3	272
80	310	200	160	138	24	3	290
100	350	235	190	162	24	3	355
125	400	270	220	188	26	3	410
150	480	300	250	218	28	3	425
200	600	375	320	285	34	3	540
250	730	450	385	345	38	3	665
300	850	515	450	410	42	4	720
350	980	580	510	465	46	4	970
400	1100	660	585	535	50	4	1055
