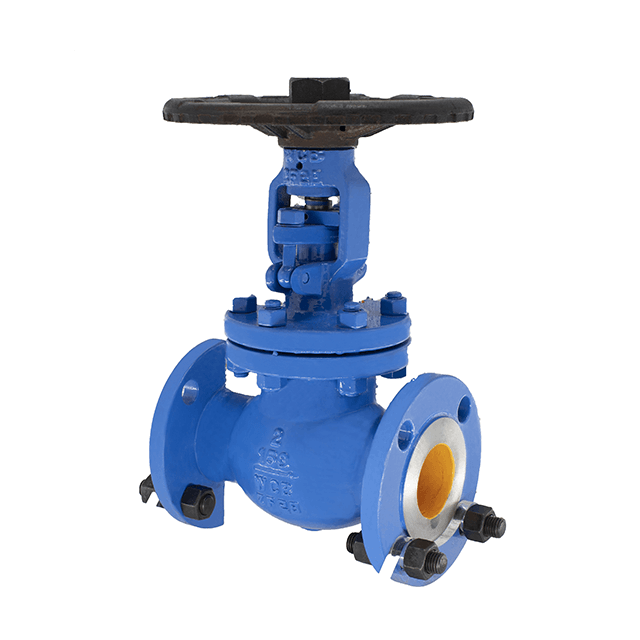

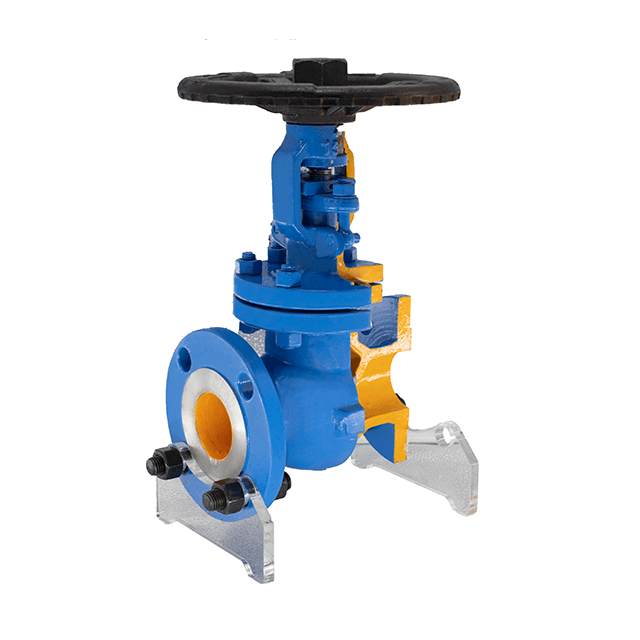

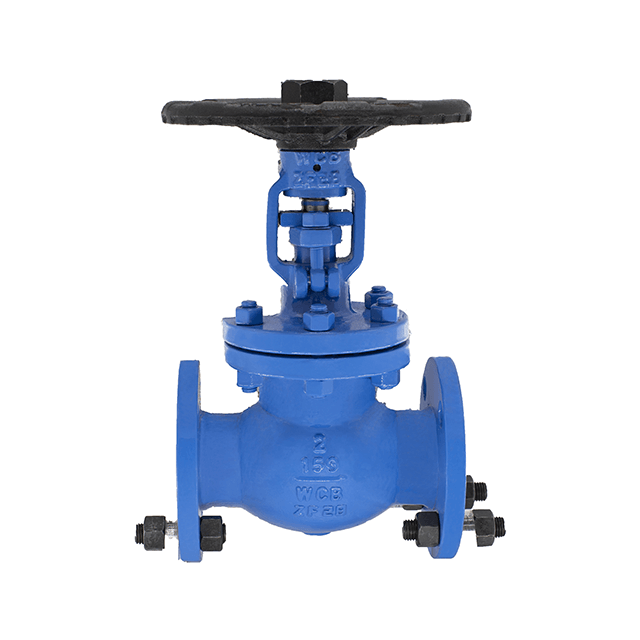

API Cast Steel Bellows Seal Globe Valve
Design：ASME B16.34
Face to Face：ASME B16.10
Flange Ends：ASME B16.5
Test & Inspection：API 598
Application: Industry, Powerstations, Flue gas purification plant, processing technology, gas supply, vapour facilities, recycling facilities, vacuum facilities, hot water, heating technology, district heating, thermal oil applications, general plant manufacturing, etc. (other applications on request)
Medium : Steam, gases, hot water, thermal fluids, hot oil, process water, vacuum facilities, ammonia etc.(other flow media on request)
Materials : WCB, WC6,SS304,SS316
Bellows materials: SS304, SS316,SS316L,SS310, Hastelly C.
Size range : 3/4"-28"
| Size: | |
|---|---|
WJ41H
LOMYV
8481804090
| Application | |||
| Hot oil system, steam system, hot and cold water system etc. | |||
| Advantage | |||

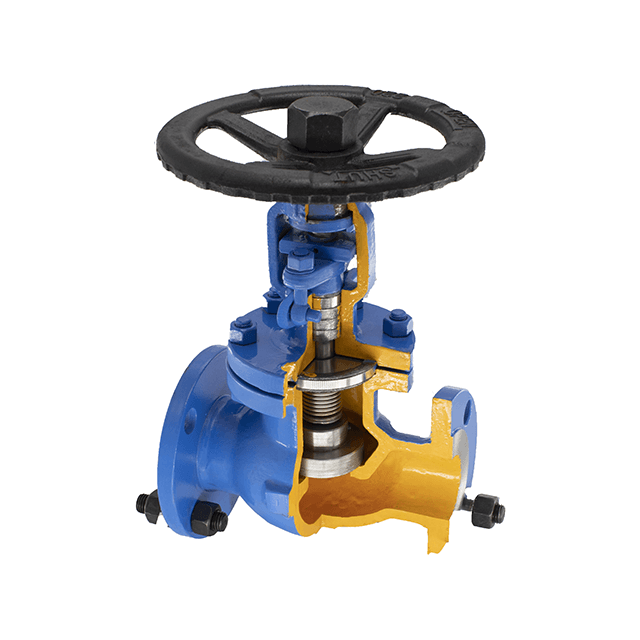

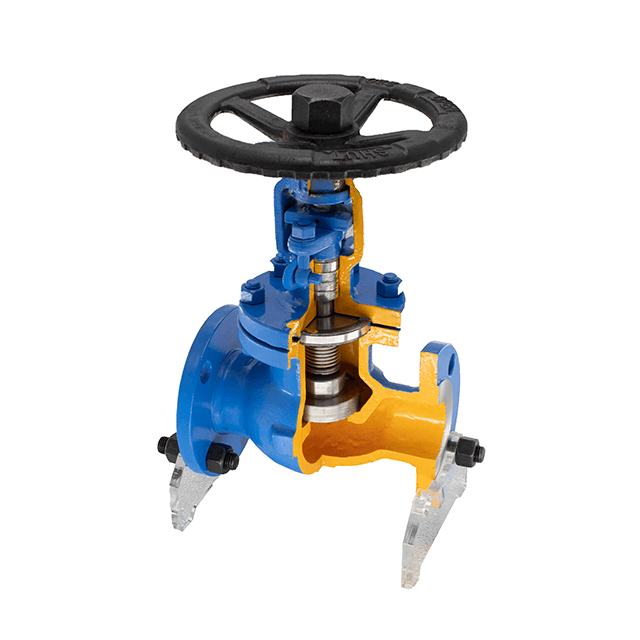

| 1.Bellow seal element. The key part of bellow sealed globe valves is metal bellow. It is the connection between cover and stem with automatic roll welding. The metal bellow can keep the stem part no leakage. | |||
| 2.Benefit from the con and streamline shape design, the disc has a reliable seal and longer service life. | |||
| 3.Double seal design(bellows+packing). Bellow and packing can protect against leakage and provide a excellent seal. | |||
| 4.Grease nipple. It can direct lubricate the stem, nut and sleeve. | |||
| 5.Ergonomic hand wheel. It provide longer service life and easier operation. | |||
| Technical specification | |||
| Design standard: API 16.34 | |||
| Face to face dimension: ANSI B 16.10 | |||
| Flanged ends: ANSI B 16.5 | |||
| Test & inspection: API 598 | |||
| Nominal Pressure | PN | ||
| Test Pressure | Strength test | 1.5PN | LB |
| Sealing test | 1.1PN | ||
| Gas seal test | 0.6 | ||
| -- | -- | ||
| Suitable temp | -196℃~600℃ | ||
| NO. | Part name | Material |
| 1 | Body | WCB、CF8、CF3 |
| 2 | Seat | 304、Stellite |
| 3 | Disc | 13Cr、F304、F316 |
| 4 | Pin | S.S304、S.S316 |
| 5 | Bellows | S.S304、S.S316L |
| 6 | Stem | 13Cr、F304、F316 |
| 7 | Gasket | Stainless+ Flexible graphite |
| 8 | Cover | WCB、CF8、CF3 |
| 9 | Nuts | ASTM 194-2H、A194-8 |
| 10 | Double-headed bolt | ASTM 193-B7、A194-B8 |
| 11 | Packing | Flexible graphite |
| 12 | Gland | WCB、CF8、CF3 |
| 13 | Jack bolt | ASTM 193-B7、A194-B8 |
| 14 | Nut | ASTM 194-2H、A194-8 |
| 15 | Locator | 1045 |
| 16 | Stem nut | Copper alloy、B2、BL2 |
| 17 | Hand wheel | Carbon steel |
| 18 | Cap | 1025 |
| 150 LB | ||||||||
| DN | Main connection size | |||||||
| L | D | D1 | D2 | b | f | H | n-Φd | |
| 1/2＂ | 108 | 90 | 60.5 | 35 | 10.7 | 215 | 4-Φ15 | |
| 3/4＂ | 117 | 100 | 70 | 43 | 11..7 | 215 | 4-Φ16 | |
| 1＂ | 127 | 110 | 79.5 | 51 | 12.7 | 220 | 4-Φ16 | |
| 1-1/4＂ | 165 | 125 | 98.5 | 73 | 14 | 250 | 4-Φ16 | |
| 1-1/2＂ | 203 | 150 | 120.5 | 92 | 16 | 260 | 4-Φ19 | |
| 2＂ | 216 | 180 | 139.5 | 105 | 17.5 | 305 | 4-Φ19 | |
| 2-1/2＂ | 241 | 190 | 152.4 | 127 | 19 | 325 | 4-Φ19 | |
| 3＂ | 292 | 230 | 190.5 | 157 | 24 | 390 | 8-Φ19 | |
| 4＂ | 406 | 280 | 241.5 | 216 | 25.4 | 455 | 8-Φ22 | |
| 5＂ | 495 | 345 | 298.5 | 270 | 29 | 570 | 8-Φ22 | |
| 300 LB | ||||||||
| 1/2＂ | 152 | 95 | 66.5 | 35 | 14 | 215 | 4-Φ16 | |
| 3/4＂ | 178 | 115 | 82.5 | 43 | 16 | 215 | 4-Φ19 | |
| 1＂ | 203 | 125 | 89 | 51 | 17 | 220 | 4-Φ22 | |
| 1-1/4＂ | 229 | 155 | 114.5 | 73 | 21 | 250 | 4-Φ22 | |
| 1-1/2＂ | 267 | 165 | 127 | 92 | 22 | 260 | 8-Φ19 | |
| 2＂ | 292 | 190 | 149 | 105 | 25.5 | 305 | 8-Φ22 | |
| 2-1/2＂ | 318 | 210 | 168.5 | 127 | 29 | 325 | 8-Φ22 | |
| 3＂ | 356 | 255 | 200 | 157 | 32 | 390 | 8-Φ22 | |
| 4＂ | 444 | 320 | 270 | 216 | 37 | 455 | 12-Φ22 | |
| 5＂ | 559 | 380 | 330 | 270 | 41 | 570 | 12-Φ25 | |
| 300 | 850 | 515 | 450 | 410 | 42 | 4 | 720 | 16-Φ33 |
