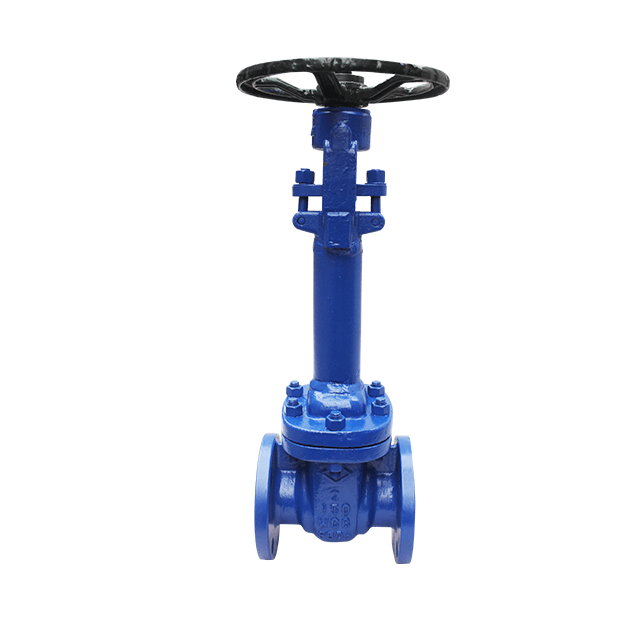

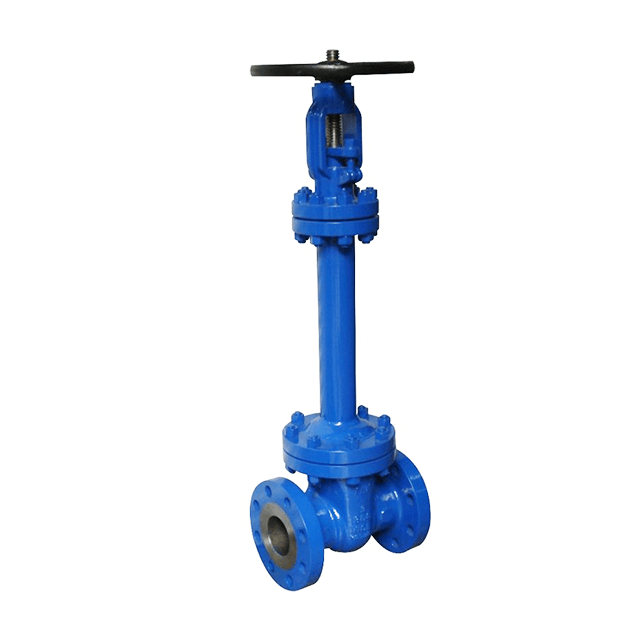

DIN Cast Steel Bellows Gate Valve
Application: Industry, Powerstations, Flue gas purification plant, processing technology, gas supply, vapour facilities, recycling facilities, vacuum facilities, hot water, heating technology, district heating, thermal oil applications, general plant manufacturing, etc. (other applications on request)
Medium : Steam, gases, hot water, thermal fluids, hot oil, process water, vacuum facilities, ammonia etc.(other flow media on request)
Materials : WCB, WC6,SS304,SS316
Bellows materials: SS304, SS316,SS316L,SS310, Hastelly C.
Size range : DN50-DN600
Class: PN16-PN320
Temperature : ≤425 ℃
Fig No. : WZ41H
| Size: | |
|---|---|
WZ41H
LOMYV
8481804090
| Application | |||
| Hot oil system, steam system, hot and cold water system etc. | |||
| Advantage | |||
| 1.Bellow seal element. The key part of bellow sealed globe valves is metal bellow. It is the connection between cover and stem with automatic roll welding. The metal bellow can keep the stem part no leakage. | |||
| 2.Benefit from the con and streamline shape design, the disc has a reliable seal and longer service life. | |||
| 3.Double seal design(bellows+packing). Bellow and packing can protect against leakage and provide a excellent seal. | |||
| 4.Grease nipple. It can direct lubricate the stem, nut and sleeve. | |||
| 5.Ergonomic hand wheel. It provide longer service life and easier operation. | |||
| Technical specification | |||
| Design standard: DIN 3356 | |||
| Face to face dimension: DIN 3202 | |||
| Flanged ends: DIN 2543-2545 | |||
| Test & inspection: DIN 3230 | |||
| Nominal Pressure | PN | ||
| Test Pressure | Strength test | 1.5PN | MPa |
| Sealing test | 1.1PN | ||
| Gas seal test | 0.6 | ||
| -- | -- | ||
| Suitable temp | -196℃~600℃ | ||
| NO. | Part name | Material |
| 1 | Body | GS-C25、1.4301、1.4401 |
| 2 | Disc | GS-C25+1.4201/1.4301 |
| 3 | Seat | 1.4301 、Stellite |
| 4 | Stem | 1.4021、1.4301、1.4401 |
| 5 | Double-headed bolt | ASTM 193-B7、A193-B8 |
| 6 | Nut | ASTM 194-2H、A194-8 |
| 7 | Metal gasket | Stainless steel |
| 8 | Back seal | 1.4021、1.4301 |
| 9 | Nut | ASTM 194-2H、A194-8 |
| 10 | Cover | GS-C25、1.4301、1.4401 |
| 11 | Packing | Flexible graphite |
| 12 | Gland | GS-C25、1.4301 |
| 13 | Nut | ASTM 194-2H、A194-8 |
| 14 | Jack bolt | ASTM 193-B7、A193-B8 |
| 15 | Stem nut | Copper alloy、D2、BL2 |
| 16 | Oil cup | Assemble |
| 17 | Cap | 1C45、1.4301、1.4401 |
| 18 | Hand wheel | Carbon steel |
| PN 16 | ||||||||
| DN | Main connection size | |||||||
| L | D | D1 | D2 | b | f | H | n-Φd | |
| 40 | 240 | 150 | 110 | 88 | 18 | 3 | 305 | 4-Φ18 |
| 50 | 250 | 165 | 125 | 102 | 20 | 3 | 344 | 4-Φ18 |
| 65 | 270 | 185 | 145 | 122 | 20 | 3 | 377 | 4-Φ18 |
| 80 | 280 | 200 | 160 | 138 | 20 | 3 | 415 | 8-Φ18 |
| 100 | 300 | 220 | 180 | 158 | 20 | 3 | 473 | 8-Φ18 |
| 125 | 325 | 250 | 210 | 188 | 22 | 3 | 505 | 8-Φ18 |
| 150 | 350 | 285 | 240 | 212 | 22 | 3 | 550 | 8-Φ22 |
| 200 | 400 | 340 | 295 | 268 | 24 | 3 | 815 | 12-Φ22 |
| 250 | 450 | 405 | 355 | 320 | 26 | 3 | 969 | 12-Φ26 |
| 300 | 500 | 460 | 410 | 378 | 28 | 4 | 1145 | 12-Φ26 |
| 350 | 550 | 520 | 470 | 438 | 30 | 4 | 1300 | 16-Φ26 |
| 400 | 600 | 580 | 525 | 490 | 32 | 4 | 1450 | 16-Φ30 |
| 450 | 650 | 640 | 585 | 548 | 34 | 4 | 1597 | 20-Φ30 |
| 500 | 700 | 715 | 650 | 610 | 36 | 4 | 1755 | 20-Φ33 |
| 600 | 800 | 840 | 770 | 725 | 40 | 5 | 1985 | 20-Φ36 |
| PN 25 | ||||||||
| 40 | 240 | 150 | 110 | 88 | 18 | 3 | 305 | 4-Φ18 |
| 50 | 250 | 165 | 125 | 102 | 20 | 3 | 344 | 4-Φ18 |
| 65 | 270 | 185 | 145 | 122 | 22 | 3 | 377 | 8-Φ18 |
| 80 | 280 | 200 | 160 | 138 | 24 | 3 | 415 | 8-Φ18 |
| 100 | 300 | 235 | 190 | 162 | 24 | 3 | 473 | 8-Φ22 |
| 125 | 325 | 270 | 220 | 188 | 26 | 3 | 505 | 8-Φ26 |
| 150 | 350 | 300 | 250 | 218 | 28 | 3 | 550 | 8-Φ26 |
| 200 | 400 | 360 | 310 | 278 | 30 | 3 | 815 | 12-Φ26 |
| 250 | 450 | 425 | 370 | 335 | 32 | 3 | 969 | 12-Φ30 |
| 300 | 500 | 485 | 430 | 395 | 34 | 4 | 1145 | 16-Φ30 |
| 350 | 550 | 555 | 490 | 450 | 38 | 4 | 1300 | 16-Φ33 |
| 400 | 600 | 620 | 550 | 505 | 40 | 4 | 1450 | 16-Φ36 |
| 450 | 650 | 670 | 600 | 548 | 42 | 4 | 1597 | 20-Φ36 |
| 500 | 700 | 730 | 660 | 566 | 44 | 4 | 1755 | 20-Φ36 |
| 600 | 800 | 845 | 770 | 670 | 46 | 5 | 1985 | 20-Φ39 |
| PN 40 | ||||||||
| 40 | 240 | 150 | 110 | 88 | 18 | 3 | 305 | 4-Φ18 |
| 50 | 250 | 165 | 125 | 102 | 20 | 3 | 344 | 4-Φ18 |
| 65 | 270 | 185 | 145 | 122 | 22 | 3 | 377 | 8-Φ18 |
| 80 | 280 | 200 | 160 | 138 | 24 | 3 | 415 | 8-Φ18 |
| 100 | 300 | 235 | 190 | 162 | 24 | 3 | 473 | 8-Φ22 |
| 125 | 325 | 270 | 220 | 188 | 26 | 3 | 505 | 8-Φ26 |
| 150 | 350 | 300 | 250 | 218 | 28 | 3 | 550 | 8-Φ26 |
| 200 | 400 | 375 | 320 | 285 | 34 | 3 | 815 | 12-Φ30 |
| 250 | 450 | 450 | 385 | 345 | 38 | 3 | 969 | 12-Φ33 |
| 300 | 500 | 515 | 450 | 410 | 42 | 4 | 1145 | 16-Φ33 |
| 350 | 550 | 580 | 510 | 465 | 46 | 4 | 1300 | 16-Φ36 |
| 400 | 600 | 660 | 585 | 535 | 50 | 4 | 1450 | 16-Φ39 |
| 450 | 650 | 685 | 610 | 560 | 50 | 4 | 1597 | 20-Φ39 |
| 500 | 700 | 755 | 670 | 615 | 52 | 4 | 1755 | 20-Φ42 |
| 600 | 800 | 890 | 795 | 735 | 60 | 5 | 1985 | 20-Φ48 |
