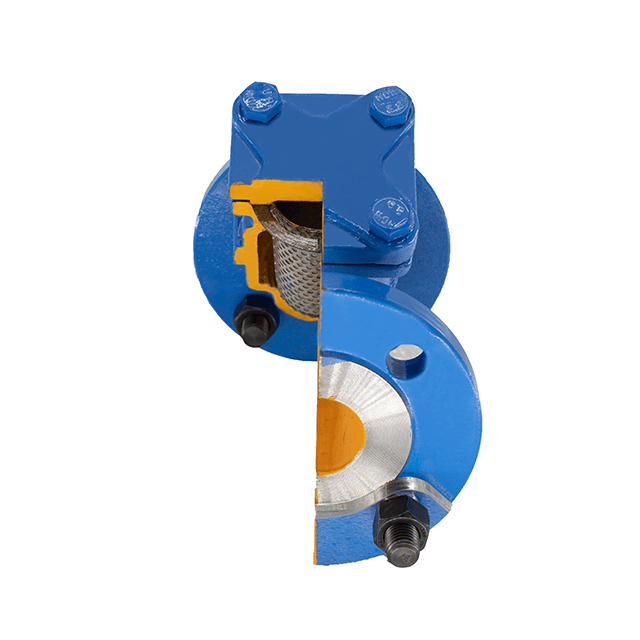

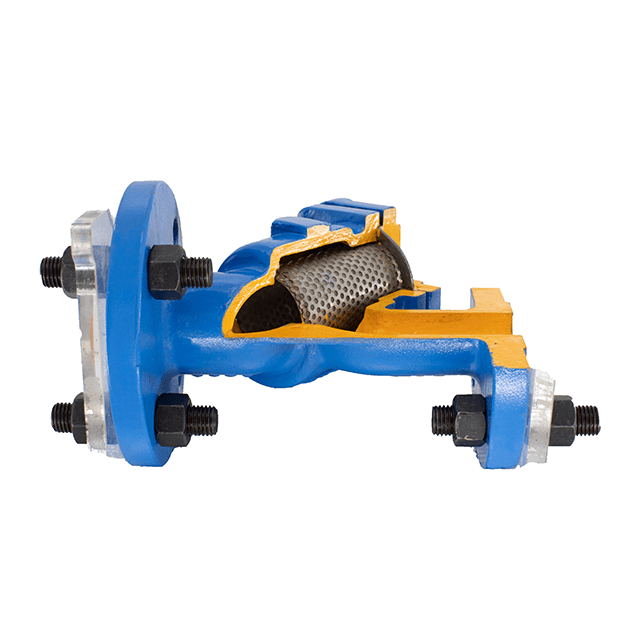

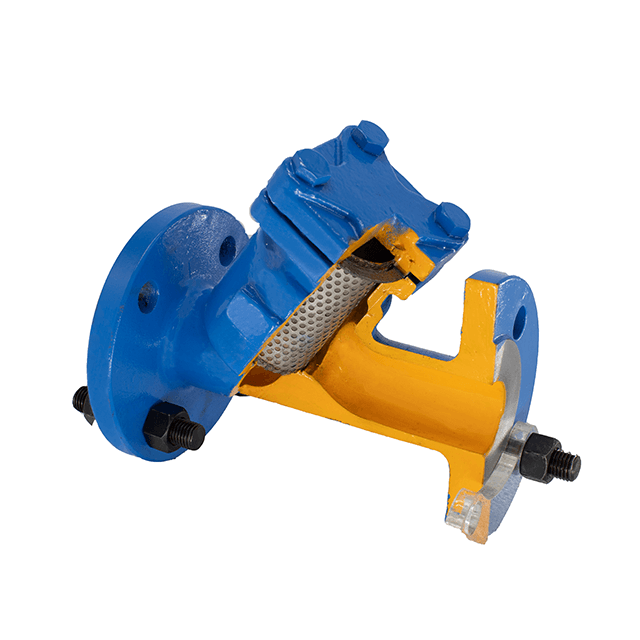

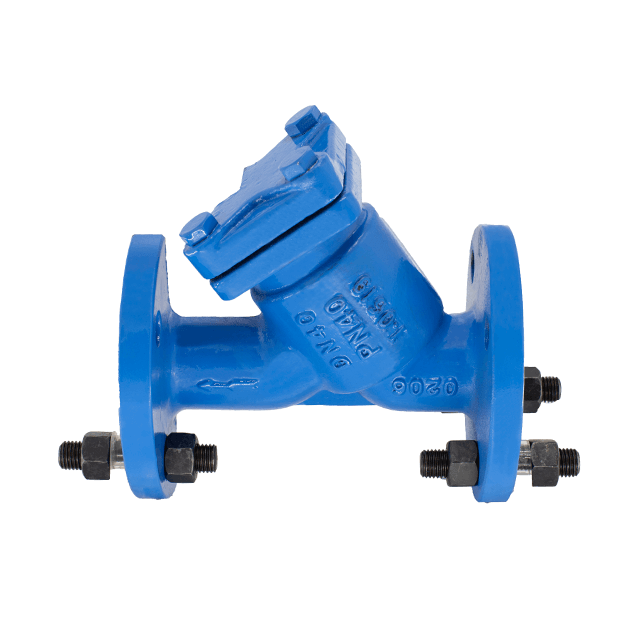

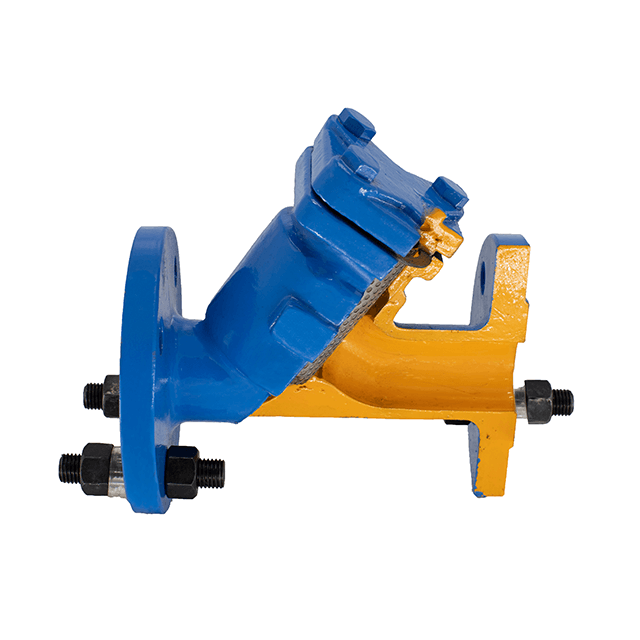

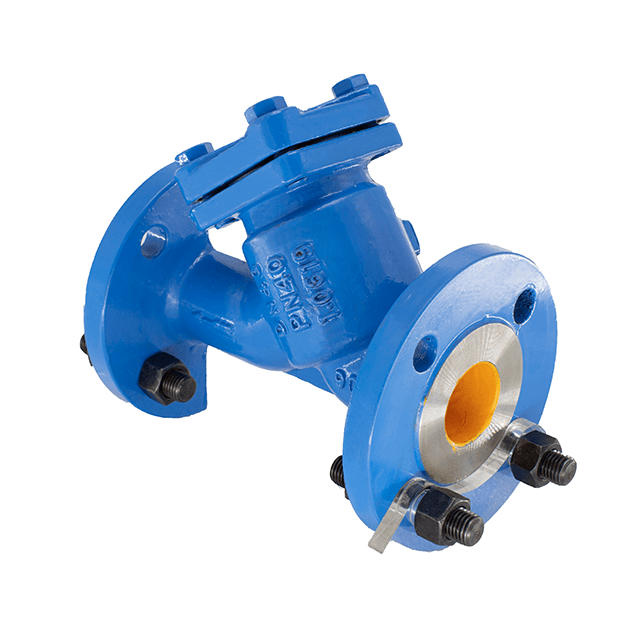

DIN Cast Steel Y Strainer
Technical specification
●Design Standard: DIN 3356 / EN 13709
●Face To Face: DIN3202 / EN 558-1
●Flange ends: DIN2543-2545 / EN 1092-1
●Test & Inspection: DIN 3230 / EN 12266
Application: Industry, Powerstations, Flue gas purification plant, processing technology, gas supply, vapour facilities, recycling facilities, vacuum facilities, hot water, heating technology, district heating, thermal oil applications, general plant manufacturing, etc. (other applications on request)
Medium : Steam, gases, hot water, thermal fluids, hot oil, process water, vacuum facilities, ammonia etc.(other flow media on request)
Materials : WCB, WC6,SS304,SS316,SS316L
Size range : DN15-DN800
Class: PN16-PN320
Temperature : ≤425 ℃
Fig No. : YG41H
| Size: | |
|---|---|
YG41H
LOMYV
8481804090
| Application | |||
| Hot oil system, steam system, hot and cold water system etc. | |||
| Advantage | |||
| 1.DIN Y type strainer is used to separate the impurity of media. It can protect other equipment for a regular service. | |||
| 2.Stainless steel filter traps make a better performance and corrosion-resistance. | |||
| 3.Maintenance is easy. All you need is just clean the filter traps. | |||
| Technical specification | |||
| Design standard: DIN 3356 | |||
| Face to face dimension: DIN 3202 | |||
| Flanged ends: DIN 2543-2545 | |||
| Test & inspection: DIN 3230 | |||
| Nominal Pressure | PN | ||
| Test Pressure | Strength test | 1.5PN | MPA |
| Sealing test | 1.1PN | ||
| Gas seal test | 0.6 | ||
| -- | -- | ||
| Suitable temp | -196℃~600℃ | ||
| NO. | Part name | Material |
| 1 | Body | GS-C25、GGG-40、1.4401 |
| 2 | Filter net | 1.4301、1.4401 |
| 3 | Metal gasket | Stainless steel |
| 4 | Cover | GS-C25、1.4301、1.4401 |
| 5 | Nut | ASTM 194-2H、A194-8 |
| 6 | Double-headed bolt | ASTM 193-B7、A193-B8 |
| PN 16 | ||||||||
| DN | Main connection size | |||||||
| L | D | D1 | D2 | b | f | H | n-Φd | |
| 15 | 130 | 95 | 65 | 45 | 16 | 2 | 195 | 4-Φ14 |
| 20 | 150 | 105 | 75 | 58 | 18 | 2 | 195 | 4-Φ14 |
| 25 | 160 | 115 | 85 | 68 | 18 | 2 | 207 | 4-Φ14 |
| 32 | 180 | 140 | 100 | 78 | 18 | 2 | 218 | 4-Φ18 |
| 40 | 200 | 150 | 110 | 88 | 18 | 3 | 225 | 4-Φ18 |
| 50 | 230 | 165 | 125 | 102 | 20 | 3 | 230 | 4-Φ18 |
| 65 | 290 | 185 | 145 | 122 | 20 | 3 | 272 | 4-Φ18 |
| 80 | 310 | 200 | 160 | 138 | 20 | 3 | 290 | 8-Φ18 |
| 100 | 350 | 220 | 180 | 158 | 20 | 3 | 355 | 8-Φ18 |
| 125 | 400 | 250 | 210 | 188 | 22 | 3 | 410 | 8-Φ18 |
| 150 | 480 | 285 | 240 | 212 | 22 | 3 | 425 | 8-Φ22 |
| 200 | 600 | 340 | 295 | 268 | 24 | 3 | 540 | 12-Φ22 |
| 250 | 730 | 405 | 355 | 320 | 26 | 3 | 665 | 12-Φ26 |
| 300 | 850 | 460 | 410 | 378 | 28 | 4 | 720 | 12-Φ26 |
| 350 | 980 | 520 | 470 | 438 | 30 | 4 | 970 | 16-Φ26 |
| 400 | 1100 | 580 | 525 | 490 | 32 | 4 | 1055 | 16-Φ30 |
| PN 25 | ||||||||
| 15 | 130 | 95 | 65 | 45 | 16 | 2 | 195 | 4-Φ14 |
| 20 | 150 | 105 | 75 | 58 | 18 | 2 | 195 | 4-Φ14 |
| 25 | 160 | 115 | 85 | 68 | 18 | 2 | 207 | 4-Φ14 |
| 32 | 180 | 140 | 100 | 78 | 18 | 2 | 218 | 4-Φ18 |
| 40 | 200 | 150 | 110 | 88 | 18 | 3 | 225 | 4-Φ18 |
| 50 | 230 | 165 | 125 | 102 | 20 | 3 | 230 | 4-Φ18 |
| 65 | 290 | 185 | 145 | 122 | 22 | 3 | 272 | 8-Φ18 |
| 80 | 310 | 200 | 160 | 138 | 24 | 3 | 290 | 8-Φ18 |
| 100 | 350 | 235 | 190 | 162 | 24 | 3 | 355 | 8-Φ22 |
| 125 | 400 | 270 | 220 | 188 | 26 | 3 | 410 | 8-Φ26 |
| 150 | 480 | 300 | 250 | 218 | 28 | 3 | 425 | 8-Φ26 |
| 200 | 600 | 360 | 310 | 278 | 30 | 3 | 540 | 12-Φ26 |
| 250 | 730 | 425 | 370 | 335 | 32 | 3 | 665 | 12-Φ30 |
| 300 | 850 | 485 | 430 | 395 | 34 | 4 | 720 | 16-Φ30 |
| 350 | 980 | 555 | 490 | 450 | 38 | 4 | 970 | 16-Φ33 |
| 400 | 1100 | 620 | 550 | 505 | 40 | 4 | 1055 | 16-Φ36 |
| PN 40 | ||||||||
| 15 | 130 | 95 | 65 | 45 | 16 | 2 | 195 | 4-Φ14 |
| 20 | 150 | 105 | 75 | 58 | 18 | 2 | 195 | 4-Φ14 |
| 25 | 160 | 115 | 85 | 68 | 18 | 2 | 207 | 4-Φ14 |
| 32 | 160 | 140 | 100 | 68 | 18 | 2 | 218 | 4-Φ18 |
| 40 | 180 | 150 | 110 | 78 | 18 | 3 | 225 | 4-Φ18 |
| 50 | 230 | 165 | 125 | 102 | 20 | 3 | 230 | 4-Φ18 |
| 65 | 290 | 185 | 145 | 122 | 22 | 3 | 272 | 8-Φ18 |
| 80 | 310 | 200 | 160 | 138 | 24 | 3 | 290 | 8-Φ18 |
| 100 | 350 | 235 | 190 | 162 | 24 | 3 | 355 | 8-Φ22 |
| 125 | 400 | 270 | 220 | 188 | 26 | 3 | 410 | 8-Φ26 |
| 150 | 480 | 300 | 250 | 218 | 28 | 3 | 425 | 8-Φ26 |
| 200 | 600 | 375 | 320 | 285 | 34 | 3 | 540 | 12-Φ30 |
| 250 | 730 | 450 | 385 | 345 | 38 | 3 | 665 | 12-Φ33 |
| 300 | 850 | 515 | 450 | 410 | 42 | 4 | 720 | 16-Φ33 |
| 350 | 980 | 580 | 510 | 465 | 46 | 4 | 970 | 16-Φ36 |
| 400 | 1100 | 660 | 585 | 535 | 50 | 4 | 1055 | 16-Φ39 |
