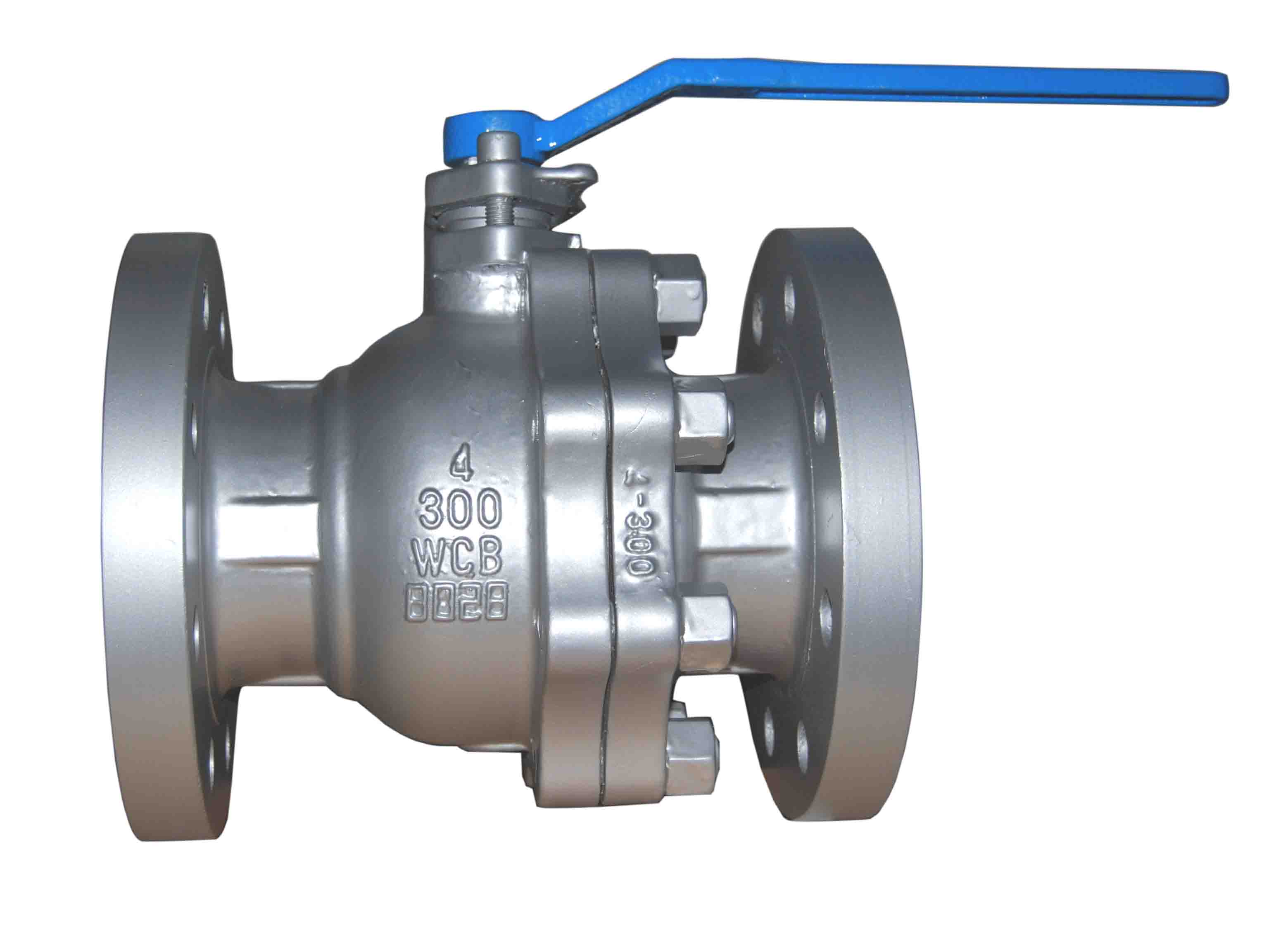

DIN Cast Steel Ball Valve

DIN standard flange ball valve is used to cut off or connect the medium in the pipeline. Different materials are used. It can be used for water, steam, oil, liquefied gas, natural gas, coal gas, nitric acid, acetic acid, oxidizing medium, urea, etc. A variety of media. DIN standard ball valve can close tightly with a small rotating torque. The completely equal internal cavity of the valve provides a straight flow channel with little resistance for the medium. The main feature of DIN standard ball valve is its compact structure, easy operation and maintenance, suitable for general working media such as water, solvent, acid and natural gas, and also suitable for media with harsh working conditions, such as oxygen hydrogen peroxide, methane and ethylene, etc.
Size:
Availability:
facebook sharing button
twitter sharing button
line sharing button
wechat sharing button
linkedin sharing button
pinterest sharing button
sharethis sharing button
  • Q41F

  • LOMYV

  • 8481804090

Features of bellows seal valves:

●Double wall bellows seal as standard.
●Plug with marginal seat

●Bellows seal welded to bonnet

●Welded seat

● Bellows seal 10,000 load cycles

● External stem thread

●Secondary sealing: gland packing(with bridge)

● Stem back seal

● Yoke gasket, double chambered

● Stem with roll hardened thread



Description

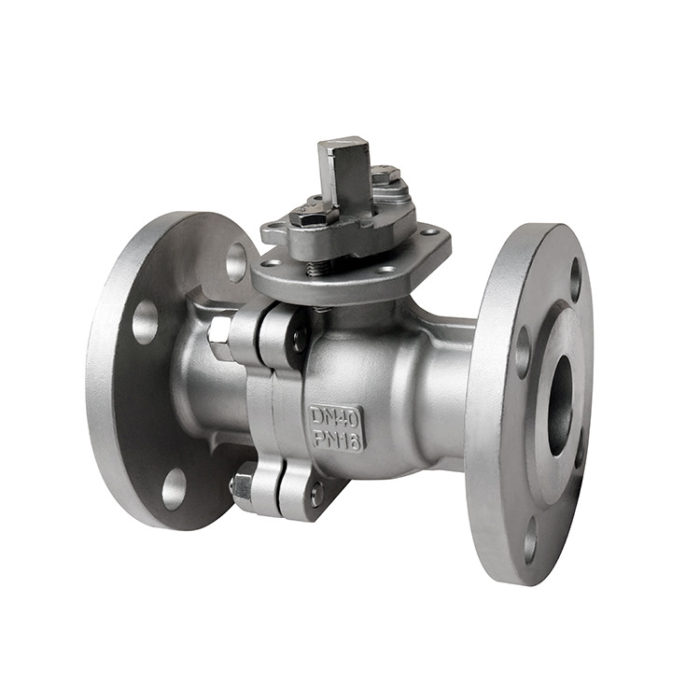

DIN 2-PC Ball Valve:

1.Technical Specifications

      (1) Design Standard: DIN EN3357-1

      (2) Face to Face Dimension: DIN EN588-1:1995

      (3) End Flange Dimension: DIN EN1092-1:2002

      (4) Structures: 2-PC Type

      (5) Material of Body: G.G, GS-C25, S.S 304, S.S 316

      (6) Pressure Rating: PN16, PN25, PN40

      (7) Test Standard: DIN EN12266:2003
